3D View

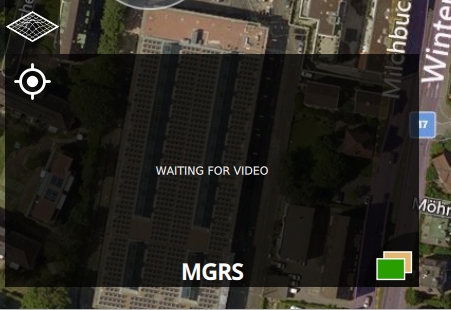

The 3D view enhances the planning and execution of a mission by giving a sense of the elevation and the detailed form of the ground below the flying vehicle. It can provide valuable information to the user that can lead to more accurate altitude planning based on actual requirements. To Access the 3D view, a button on top of the small video screen should be used:

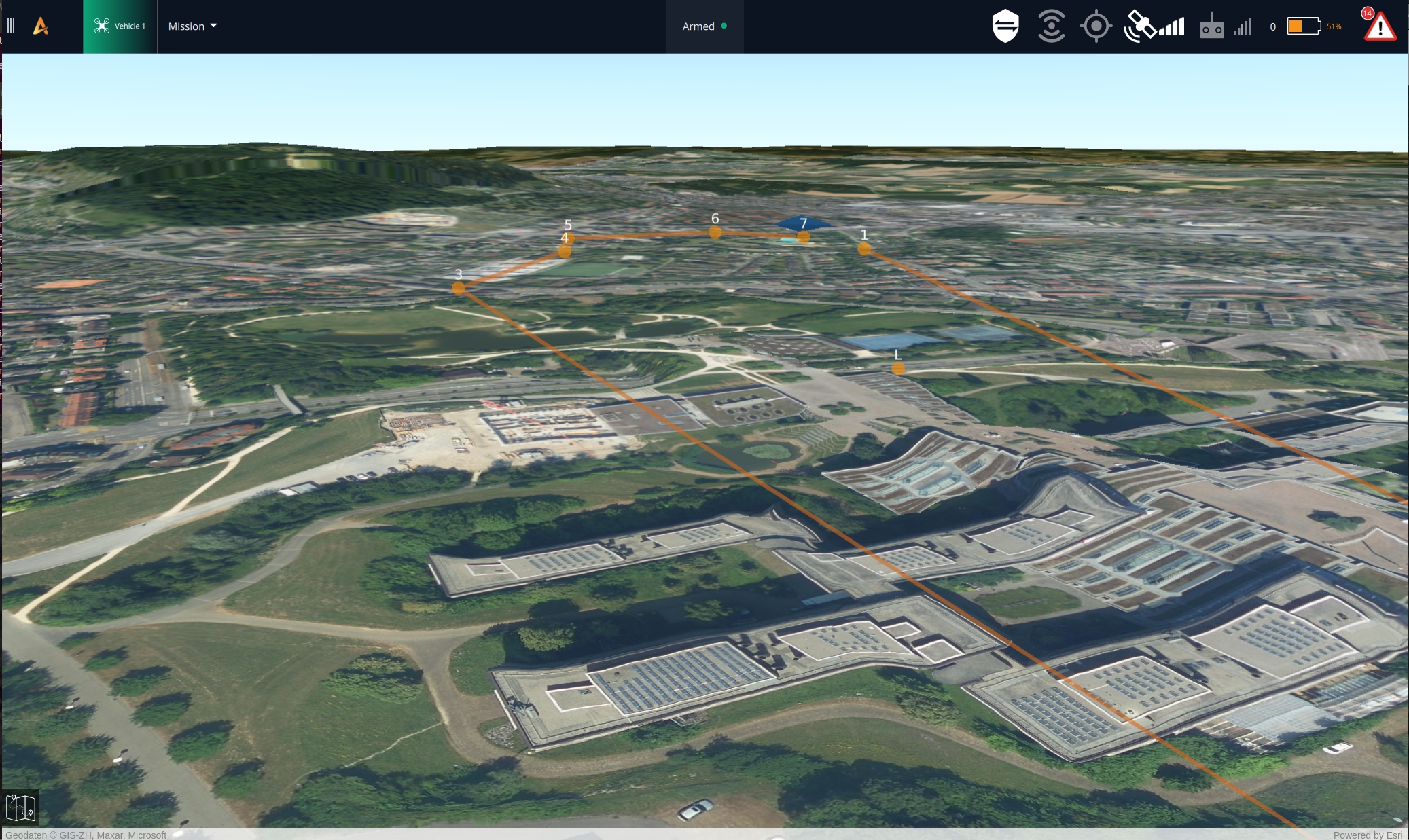

When the button is pressed the 3D view appears on the main view Window. To return to the former view the 2D view button on the bottom left corner should be pressed.
